Information about solar panel system

1 kWp J  F  M  A  M   J   J   A   S  O  N  D
kWh:  30 50 80 120 130 130 130 110 100 70 30 20 = 1000kWh
kWh:  28 55 92 122 123 116 120 112 97 68 36 26 = 1000kWh RB

Information about solar panel system (23 may 2025)

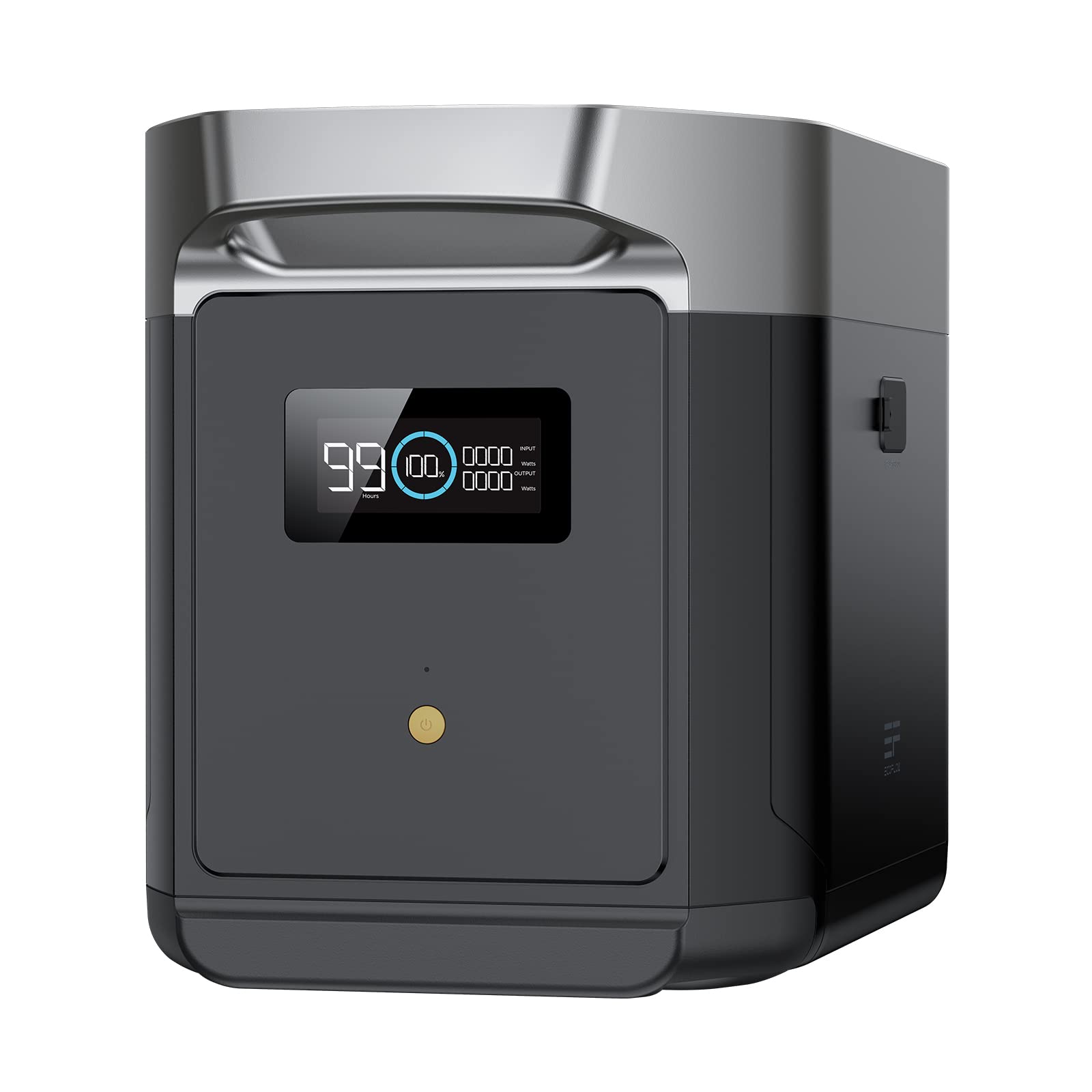

Added Ecoflow Delta Max 2 battery

Information about solar panel system (17 may 2025)


Removed AP systems DS3 inverter

Information about solar panel system (16 march 2025)

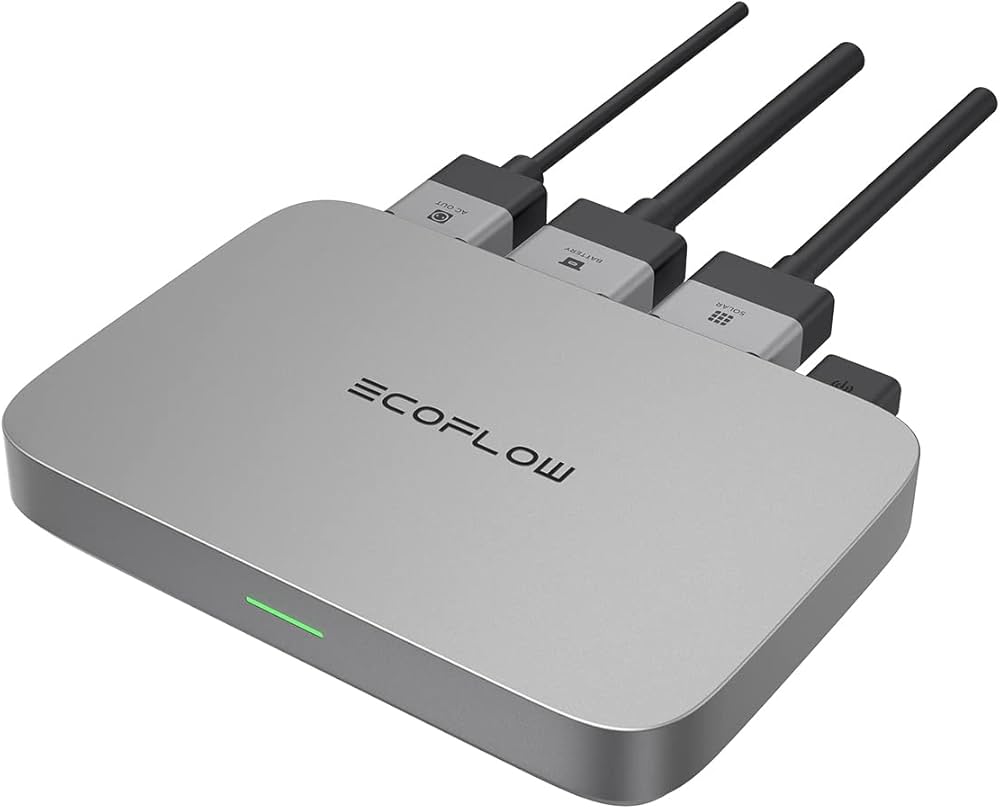

Added Ecoflow powerstream to 1 solar panel for testing

Information about solar panel system (22 jan 2024)


Removed Trina solar 4x 245wp and sold

Information about solar panel system (17 jan 2024)


Replaced 4x enphase IQ7 with APsystems DS3 880VA

Inverter Type: Grid-Tie Microinverter
Maximum/Peak Efficiency [%]: 99.5
CEC weighted efficiency @ 240V [%]: 96.5
DC Power Rating [W]: 880
Min. DC voltage / start voltage [V]: 26
Max. Input Voltage per MPPT [V]: 60
AC Power Rating [W]: 880
AC voltage range [V]: 211-264V

UPDATE 15/11/2023: 2 new solarpanel on garagedoor

2x Denim PERC 450 Wp Full Black
Max Power 450W STC* (335W NOCT*)
OC voltage 41,33V (39,17V)
SC current 13.9A (11.2A)
Vmpt 34.78V (32.96V)
Impt 12.95A (10.16A)
Efficiency 20.8%
( * Standard Testing Conditions (Nominal Operating Cell Temperature) )

UPDATE 24/03/2022: 2x => 4x Enphase IQ7

UPDATE 18MAR2022:

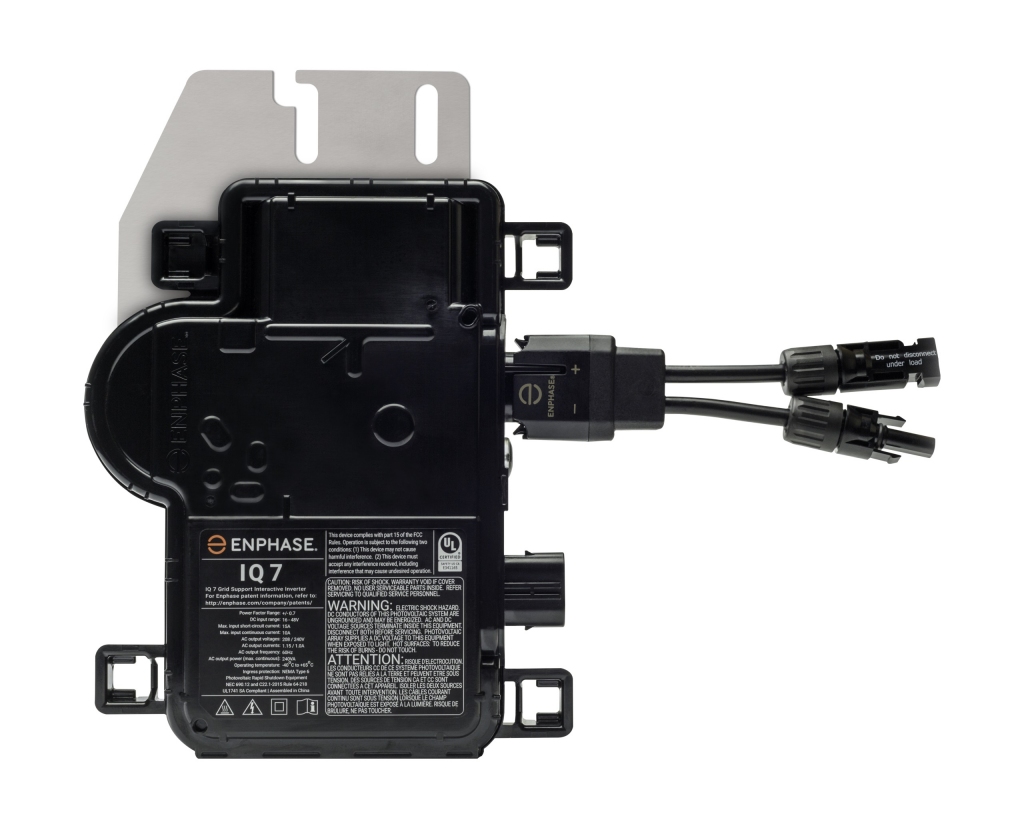

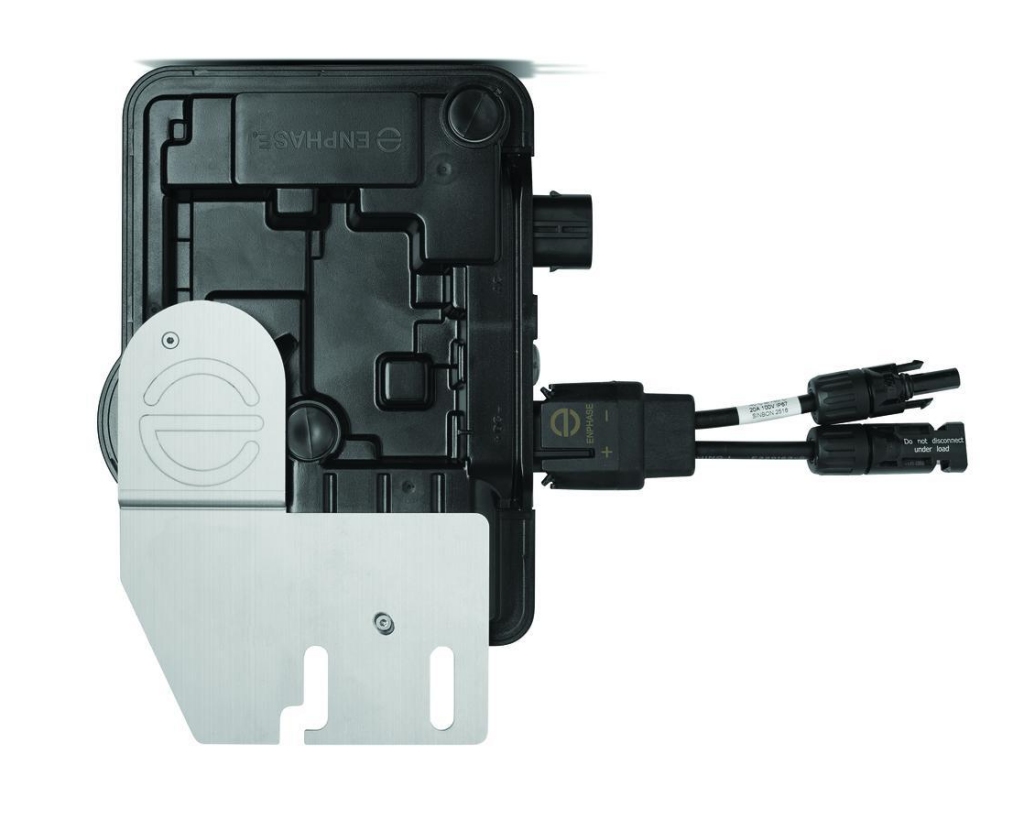

2x Enphase IQ7 inverter
Max Input: 48V DC
Peak power tracking voltage: 27-37V
Operating Voltage: 16-48V
Min/MAX start voltage: 22-48V
Max DC short circuit current: 15A
Peak Power output: 250VA
Max continuous power output: 240VA
Frequency range: 47-68Hz
Peak Efficiency: 97,6%
Communication: PLC, Power Line Communication

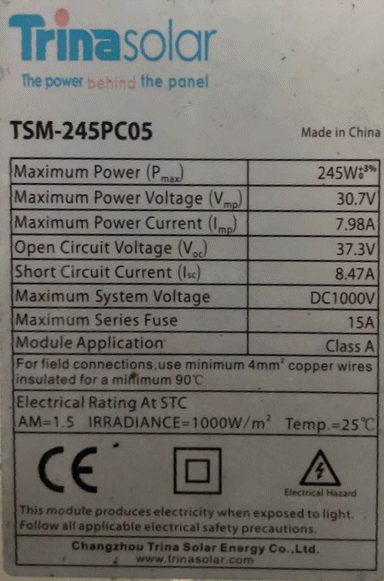

Solar panel: Trinasolar TSM-245PC05 x4

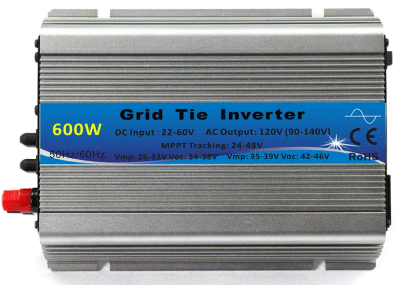

Grid Tie Inverter 600W (12dec21 => 17mar22)

230VAC(190-260VAC) 48Hz ~ 62Hz
MPPT range LOW:
Vmp 26V - 33V
Voc 34V - 38V
MPPT range high:
Vmp 35V - 39V
Voc 42V - 46V
