Information about solar panel system (27 may 2022)

1 kWp J  F  M  A  M   J   J   A   S  O  N  D
kWh:  30 50 80 120 130 130 130 110 100 70 30 20 = 1000kWh
kWh:  28 55 92 122 123 116 120 112 97 68 36 26 = 1000kWh RB

20x 360Wp (LR4-60HPB-360W) = 7200Wp
Max Power 360W STC* (268.8W NOCT*)
OC voltage 40.8V (38.2V)
SC current 11.33A (9.16A)
Vmpt 34.8V (32.4V)
Impt 10.35A (8.30A)
Efficiency 19.8%
( * Standard Testing Conditions (Nominal Operating Cell Temperature) )

1x SMA sunny tripower 5000TL
DC
Max Power 9000Wp
Max Voltage 1000V
MPPT voltage 295-800V (580V nom)
Min Voltage 150V
Min Start Voltage 180V
Max current A/B 11A/10A
Max SC current A/B 17A/15A

AC
Max Power 6000VA
AC range 160-280V
Max current 8.7A
Efficiency max/europ 98% / 97.4%

Information about solar panel system (12 dec 2021)

1 kWp J  F  M  A  M   J   J   A   S  O  N  D
kWh:  30 50 80 120 130 130 130 110 100 70 30 20 = 1000kWh
kWh:  28 55 92 122 123 116 120 112 97 68 36 26 = 1000kWh RB

4x 245Wp (TSM-245PC05) = 980Wp

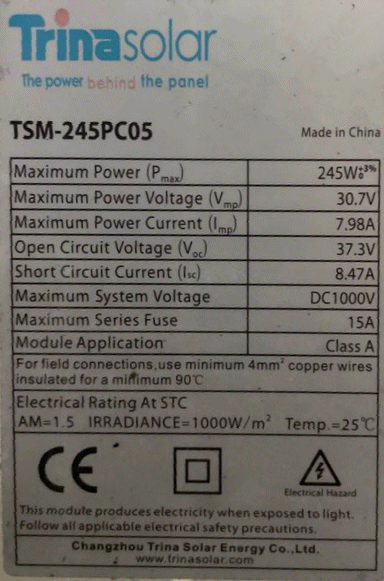

Solar panel: Trinasolar TSM-245PC05

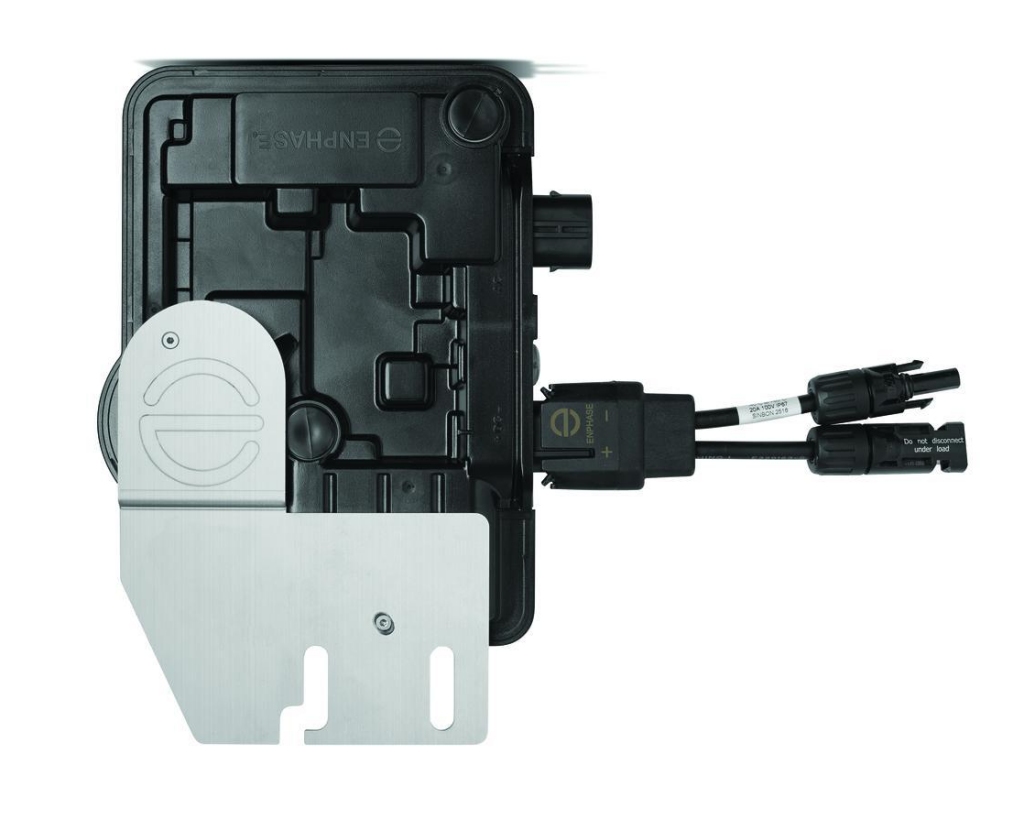

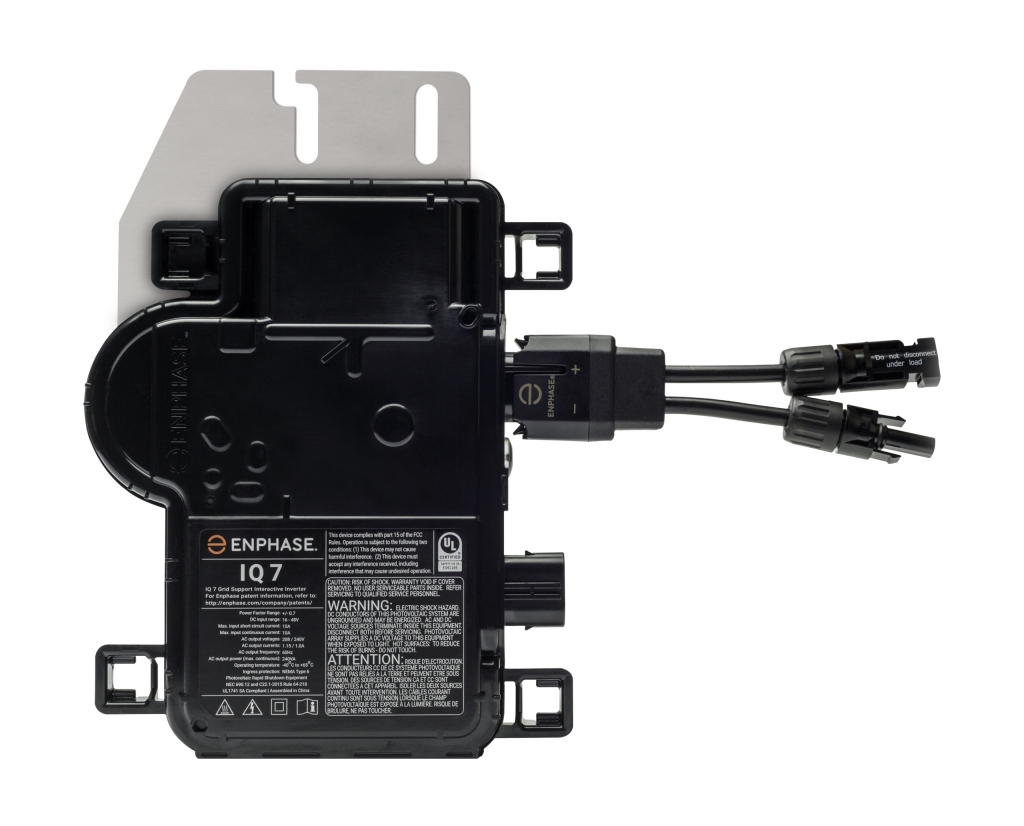

4x Enphase IQ7 inverter
Max Input: 48V DC
Peak power tracking voltage: 27-37V
Operating Voltage: 16-48V
Min/MAX start voltage: 22-48V
Max DC short circuit current: 15A
Peak Power output: 250VA
Max continuous power output: 240VA
Frequency range: 47-68Hz
Peak Efficiency: 97,6%
Communication: PLC, Power Line Communication

Information about solar panel system (15 nov 2023)


2x Denim PERC 450 Wp Full Black
Max Power 450W STC* (335W NOCT*)
OC voltage 41,33V (39,17V)
SC current 13.9A (11.2A)
Vmpt 34.78V (32.96V)
Impt 12.95A (10.16A)
Efficiency 20.8%
( * Standard Testing Conditions (Nominal Operating Cell Temperature) )

Information about solar panel system (17 jan 2024)

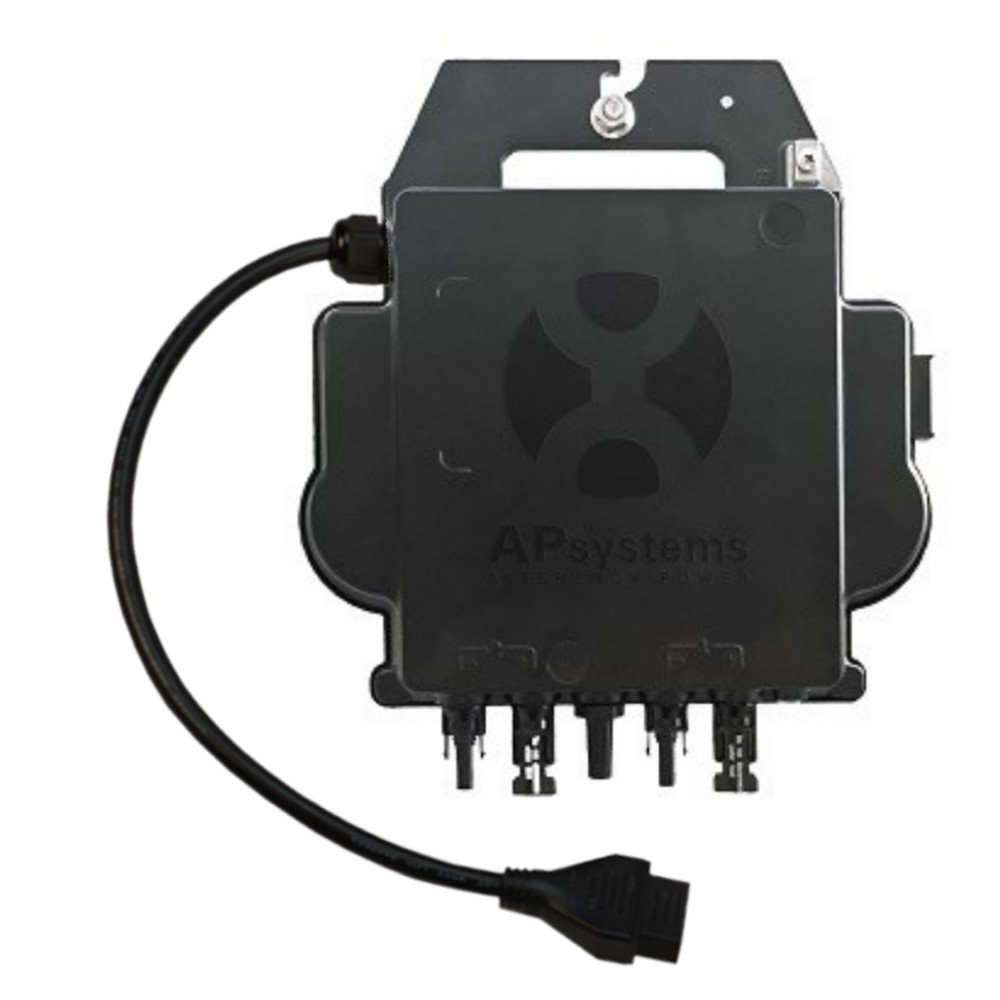

Replaced 4x enphase IQ7 with APsystems DS3 880W

Information about solar panel system (22 jan 2024)


Removed Trina solar 4x 245wp and sold
